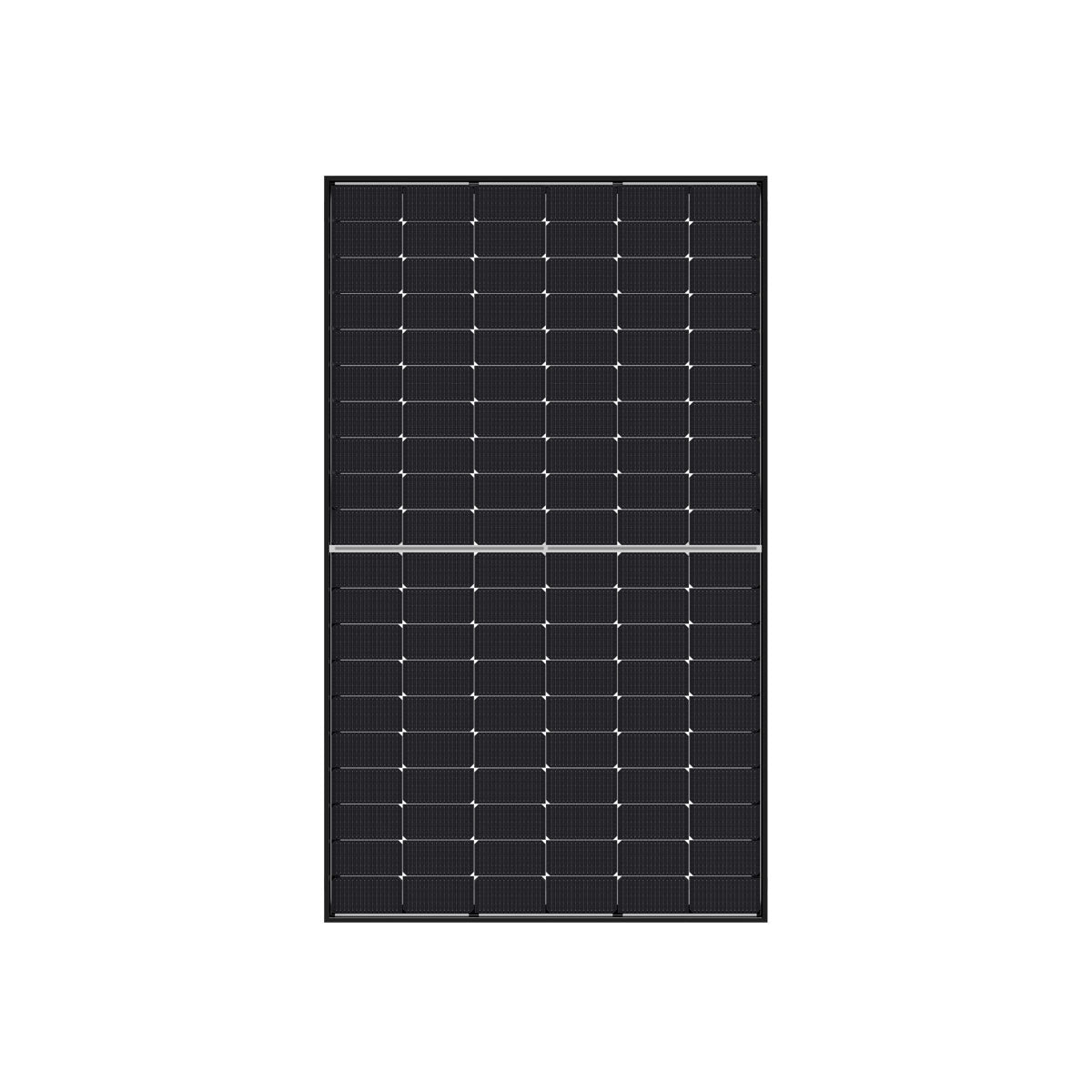

Jinko Tiger Neo 470W Solar Panel
Jinko Tiger Neo 470W Solar Panel
Regular price
$94.00 AUD
Regular price
Sale price
$94.00 AUD
Key Features
- High-efficiency N-Type TOPCon cells (~21.78%)
- SMBB + Hot 2.0 + PID resistance for stable output
- Positive power tolerance (0 ~ +3%)
- Wind load 2400 Pa & snow load 5400 Pa; salt & ammonia resistant
- Black frame, white backsheet — sleek & functional
- High system voltage support (1000 / 1500 V DC), robust IP68 box & JK03M2 connectors
- Certified: IEC 61215, IEC 61730, ISO 9001/14001/45001
Product Specification
| Model | JKM470N-60HL4-V |
| Peak Power | 470 W |
| Efficiency | ~21.78% |
| Power Tolerance | 0 – +3% |
| Cells | 120 (6×20) N-Type mono |
| Dimensions (mm) | 1903 × 1134 × 30 |
| Weight | ~24.2 kg |
| Frame / Backsheet | Black frame / White backsheet |
| Junction Box & Cabling | IP68 box; ~400 mm (+) / 200 mm (–); JK03M2 connectors |
| Wind / Snow Load | 2400 Pa / 5400 Pa |
| System Voltage | 1000 / 1500 V DC |
| Certifications | IEC 61215, IEC 61730, ISO 9001/14001/45001 |
Warranty Information
Product Warranty: 12 years (materials & workmanship)
Performance Warranty: At least 87% of rated power after 30 years
